EasyLinkHD is a special accessory
allowing you to have HDTV in full resolution 1080p on a second TV in your
home ( no limit in the number of TVs connected ) It
requires cable connection via UTP cable. Input and
output are in HDMI standard. If running cables is not
possible you better go for the
TeleLink which connects the
main Sky decoder to a second TV without wires but in
SD ( standard definition). Both
units are easy to install and come with detailed
instructions. cable is not included in the price of
the EasyLink HD transmitter and receiver via UTP
cable CAT 5.
HDMI EasyLinkHD extender
over CAT6 Powered HDMI Splitter

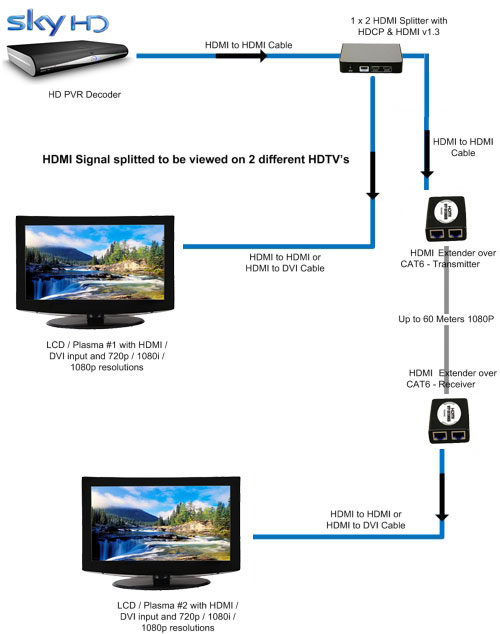

common usage and wiring diagram
To have the
picture on a second HD screen in your home you will
need a 2 way powered 1080p HDMI splitter, 4 HDMI
cables to make the connections between the different
units, a EasylinkHD transmitter and receiver over
CAT6 UTP cable, and as an option a Zapline infrared
extender and a secondary remote controller so you
can change channels on the Sky HD box as if you were
infront of it.

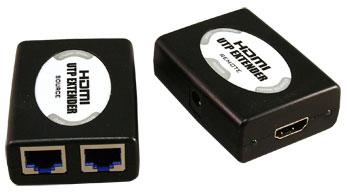

A pair of
transmitter & receiver HDMI over CAT6

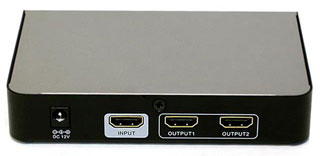

HDMI 1080p 2 way splitter
Please note UTP CAT6
cable is not included in this pack and is to be
purchased separately depending on the lenght you
need.
|
Sky HD without a dish.
check details here. |
 |
|
